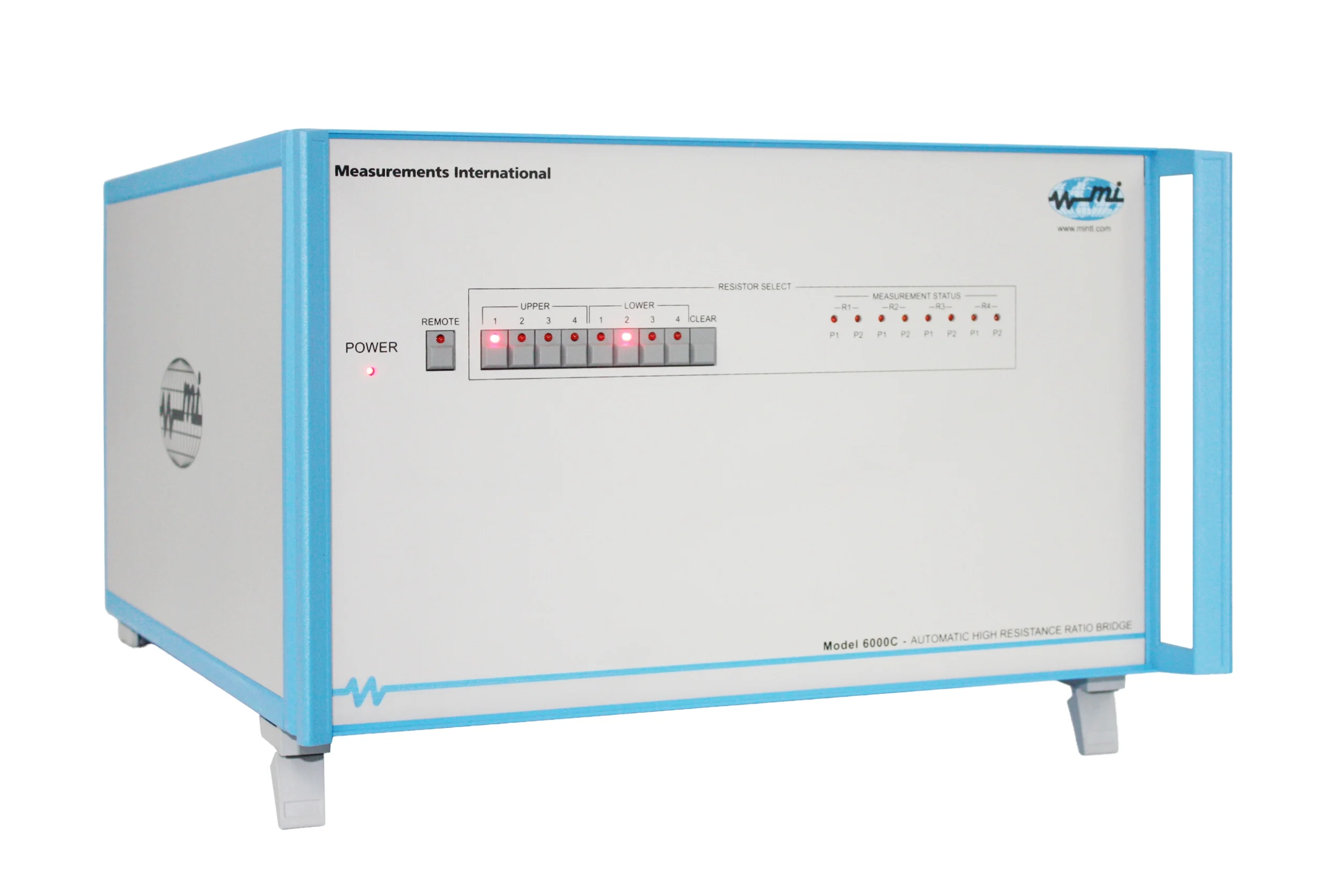

6000C Automated High Resistance Ratio Bridge

  • Range 10 kΩ to 1 TΩ
  • Accuracy < 20 x 10-9 for 10 kΩ Ratios
  • Accuracy < 0.5 x 10-6 for 100 MΩ
  • High Resistance Ratio Bridge
  • True Ratio Self Calibration
  • Range 10 kΩ to 1 TΩ
  • Built In 4 Channel Matrix Scanner
  • Linearity < 5 x 10-9
  • Full System Solutions and Full System Integration Using MI 1000B 110 V Source, 6000C Software and 4200 Series of Matrix Scanners
Features & Benefits
Feature Benefit
Advanced Cutkosky/Binary Voltage Divider Technology This innovation addresses all the inaccuracies typically found in direct current comparators, significantly improving measurement uncertainties
Enhanced Internal Guard Circuit Boosts insulation resistance and overall performance
Upgraded Divider Board Design Featuring new high-precision resistors and an optimized design for superior temperature stability, the 6000C ensures enhanced performance over its predecessor
New Microcontroller Advanced microcontroller enhances the overall performance and functionality of the 6000C, marking a significant upgrade from the 6000B
Specifications
Resistor Range                 Accuracy (95%) (2  σ)                Ratio 0.1 through 10 Applied Voltage
100 kΩ to 10 kΩ < 0.02 x 10-6 10 V to 20 V
10 kΩ to 100 kΩ < 0.1 x 10-6 10 V to 50 V
100 kΩ to 1 MΩ < 0.1 x 10-6 10 V to 110V
1 MΩ to 10 MΩ < 0.1 x 10-6 10 V to 110V
10 MΩ to 100 MΩ < 0.5 x 10-6 10 V to 110V
100 MΩ to 1GΩ < 5 x 10-6 10 V to 110V
Measurements above 1 GΩ require special resistor configurations
10 GΩ < 20 x 10-6  10 V to 110V
100 GΩ < 200 x 10-6  10 V to 110V
1 TΩ < 500 x 10-6  10 V to 110V
Ratio 100:1 < 2 x 10-6  10 V to 110V
Ratio 1000:1 < 200 x 10-6  10 V to 110V
