Standard Resistors

1310B-X AccuRes Resistance Standard

Featuring

• Combines Primary Level Resistors with Scanner and
  Temperature Controlled Chamber
• Touch screen controller shows cal value and drift information
• Designed for use as DC Calibration HUB for automated Calibrator and DMM stations
• 0.1 Ω to 1 GΩ
• 0.1 Ω capable of 3 A

9331G Series

Series of Primary High Value 2 Terminal Resistors from 10 MΩ to 100 TΩ

• High Stability
• 1 MΩ to 100 TΩ
• Split Guard Circuit
• Internal Temperature Sensor
• Custom Values Available
• NIST Design
• Includes Calibration Data

9331 Standard AC/DC Air Resistor

• ISO 17025 calibrations available
• High stability
• 10 μΩ to 100 MΩ
• Operating range 18 °C to 28 °C
• Custom values available
• Low-temperature coefficient
• Stability better than 2.5 ppm/year
• No air or oil bath required
• Typical AC/DC error < 1 ppm up to 1 kHz for resistor values up to 10 kΩ

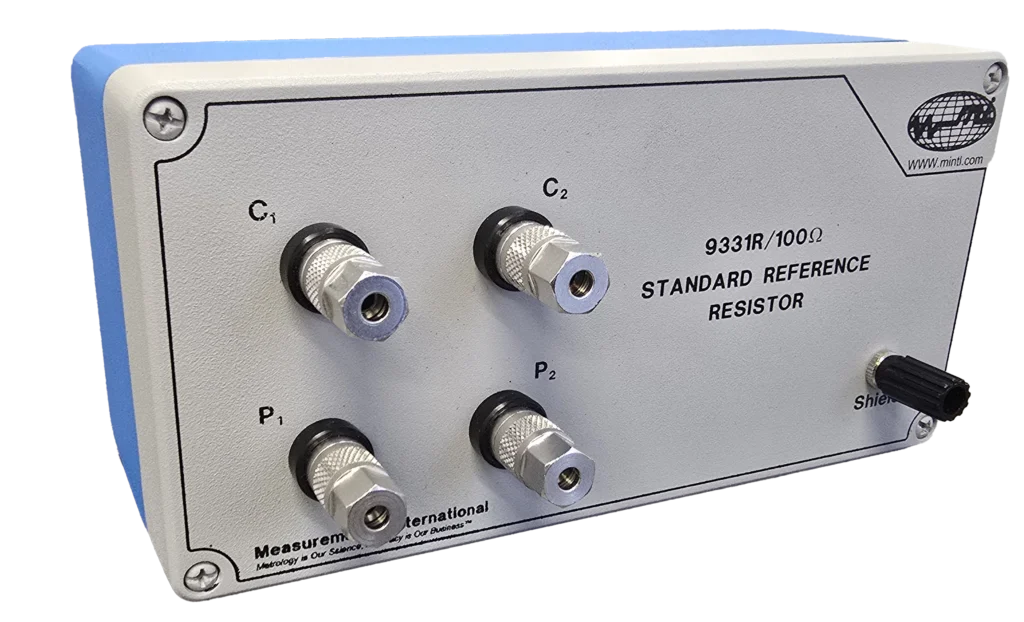

9331R Precision Standard AC/DC Reference Resistors

• 9331R AC/DC Reference Resistors
• High stability
• 0.1 Ω to 100 MΩ
• Operating range: 18 °C to 28 °C
• Custom values available
• Metal foil technology
• Ultra-low temperature coefficient
• Typical AC/DC Error < 1 ppm to 1 kHz

9210B Reference Series Standard AC/DC Oil Resistors

• Decade Values 0.1 Ω, 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ and 1 M with Optional Carrying Case
• Temperature Coefficient < 2 × 10^-7/°C
• Long Term Drift < 1 × 10^-6/Year
• No Pressure Coefficient
• Maximum Dissipation 100 mW
• Highest Performance Dissipation 10 mW
• Typical AC/DC Error < 1 ppm Up to 1 kHz

9210A Series

9210A-1 & 0.1

1 Ω & 0.1 Ω Resistor with Carrying Case

• Replacement for Thomas 1 Ω
• Temperature Coefficient < 0.05 × 10^-6/°C
• Long Term Drift < 0.2 × 10^-6/Year
• No Pressure Coefficient
• Maximum Dissipation 100 Milliwatts
• Highest Performance Dissipation 10 Milliwatts
