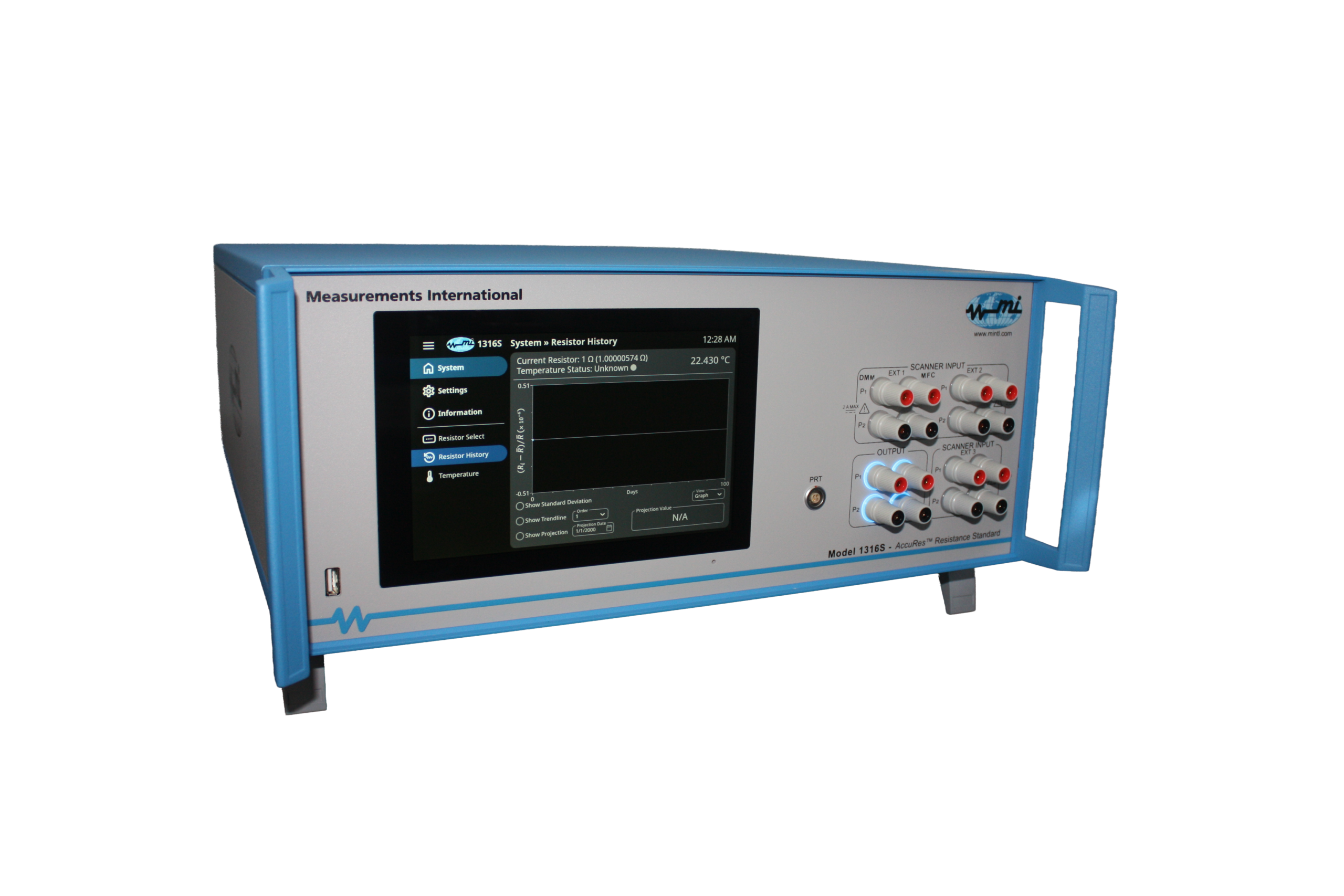

1310B-T Temperature Resistance Standard

  • Combines Primary Level Resistors with Scanner and Temperature Controlled
    Chamber
  • Touch screen controller shows cal value and drift information
  • Designed for use as temperature reference standards
  • 10 Ω, 25 Ω, 100 Ω, 200 Ω, 400 Ω and 1000 Ω Internal Standards
Features & Benefits

The 1310B-T family was designed to meet the requirements of automated DVM and calibrator calibration. Built around a low-thermal scanner, and temperature controlled enclosure the 1310B-T provides 11 high-stability standard reference resistors 10 Ω, 25 Ω, 100 Ω, 200 Ω, 400 Ω and 1000 Ω Internal Standards, covering the full range of resistance standards required for precision calibration.
Additionally, the system includes two external channels that function as a connection hub for external standard connections.
The 1310B-T from Measurements International provides temperature laboratories with the ultimate
reference standards.

Feature Benefit
6 resistors values 10 Ω, 25 Ω, 100 Ω, 200 Ω, 400 Ω and 1000 Ω. One box covers all of your temperature
measurement requirements.
Touch Screen Interface Resistor Tracking and history graph.
Unit has internal temperature chamber. No external temperature chamber required, no
external scanner required.
Easy connection and change for resistors. Customers do not need to re-wire connections as the unit has a built-in scanner board for automation and ease of use.
Resistors based on proven resistor design with 24-hour stability of better than ± 0.01 μΩ/Ω. Customers can achieve world-leading specifications
in one cost-efficient solution.
Built-in 4-terminal scanner. Combining two instruments into one
simple-to-use instrument.
External extra channel. Connect to the resistance value of your choice.
Front panel or GPIB controlled. Simplifies operation for the user.
Internally mounted temperature
sensor PT100.		 Users can connect to the front panel and monitor the
internal oven.
Specifications
Nominal
Resistance
(Ω)		 Tolerance
(± μΩ/Ω)
(± ppm)		 24-Hour
Stability
(± μΩ/Ω)
(± ppm)		 12-Month
Stability
(± μΩ/Ω)
(± ppm)		 Temperature
Coefficient
(± μΩ/Ω/°C)
(± ppm/°C)		 Max. Voltage
(Volts)
10 10 0.01 2.5 0.005 1.0
25 10 0.01 2.5 0.005 1.58
100 10 0.01 2.5 0.005 3.16
200 10 0.01 2.5 0.005 4.47
400 10 0.01 2.5 0.005 6.32
1000 10 0.01 2.5 0.005 10.0
Internal Temperature Stability ± 0.1 °C Over a 1-Year Period
Ambient Temperature Range 23 °C ± 5 °C
Ambient Humidity Range 20 to 70 % RH
Warranty Standard 2-Year Parts & Labour

Scanner Specifications

Operation Four-Terminal
Error Contribution < 20 nV
Contact Configuration Relay – Two Coil Latching
Max Carrying/Switching Current 4/2 A @ < 30 V (DC)
Maximum Working/Switching Voltage 1000/220 V @ < 100 mA (DC)
Contact Resistance < 0.05 Ω
Expected Relay Life 108 Operations
Insulation Resistance > 1012 Ω
