AccuLoss® Series of Transformer Loss Measurement System
- Performance of Load and No
Load Loss Measurements - Heat Run Test
- Induced Voltage Test
- Zero Sequence
Impedance Measurement - Manual and Auto-ranging
- Automatic Calculation & Display of Power Measurement
Why Measurements International?
Discover unparalleled precision and reliability with Measurements International (MI) – the premier provider of electrical metrology and electrical power transformer testing products and services.
Recognized as the leading provider in the industry, MI’s products and services are trusted by the majority of National Measurement Institutes and hundreds of primary standards labs worldwide. This widespread use ensures accurate and consistent results for scientific research and critical trade and commerce, making MI the top choice for all electrical metrology needs.
6020A DCC Ratio Bridge
- 6020A Resistance Ratio Bridge
- Next Generation Bridge
- NEW Micro-Controller for improved speed and functionality
- NEW capacitive touchscreen with enhanced design and easy-to-use operation
- Best Accuracy < 0.025 µΩ/Ω
- Maximum Ratio 14:1
- IEEE488.2 Standard
- System Integration with Measurements International (MI) Matrix Scanners and High-Current Range Extenders
- NEW Zero Filter
- NEW 1 kHz Sample Rate
- NEW Selectable Settle Time & Measurement Time
- NEW MI Software Package
- Two Selectable Measurement Algorithms
1330A Automated Artifact Calibrator
Three Standards – One Box
- Fully Automated Artifact Calibration of
Calibrators and DMMs from a Single Instrument - Primary 1 Ω and 10 kΩ
- 10 V Zener Reference
1340A High Precision Voltage Divider
Simplify Your Procedures. Simplify Your Work.
- High Stability
- No Self-Alignment
- 10:1, 100:1 and 1000:1 Ratios
7070A AC Ratio Bridge
- Calibration of Voltage and Current Transformers from a Single Instrument
- Calibration of Instrument Transformers with Different Rated Ratios Using One Single Reference Standard
- Test Frequency from 15 to 100 Hz
- Calibration of CT Up to 10000 A
- Calibration of VT Up to 800 kV
- Short Measurement Times with High Accuracy and Low Inherent Burdens
- Accurate Ratio Measurements of Two AC Signals – White Paper
AccuBridge® 6020T Series

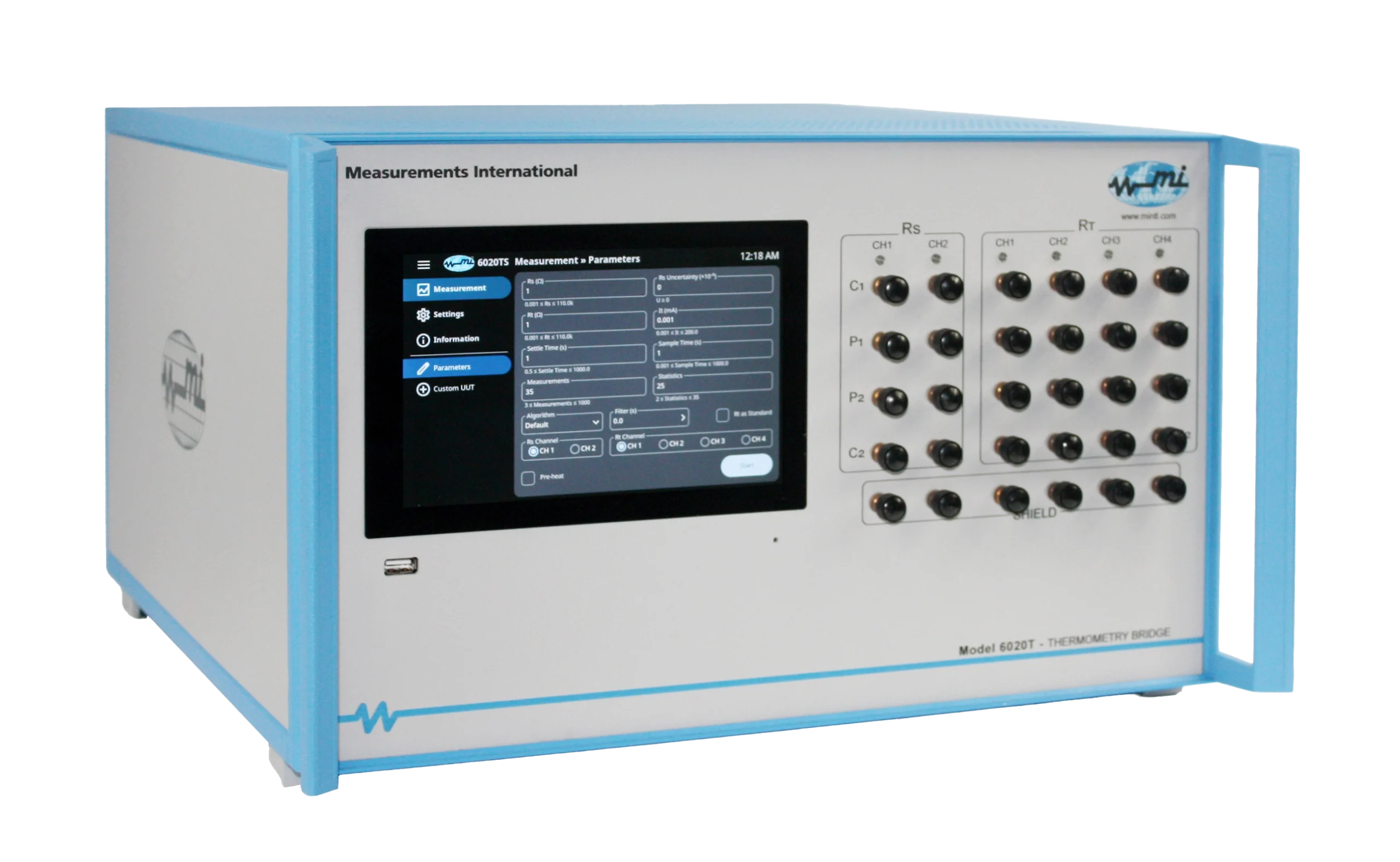

6020T – Premium Automated Thermometry Bridge
- 0.01 Ω to 100 kΩ Range
- Front Panel Channel Scanner
- Accuracy < 15 × 10-9
- Linearity < 5 × 10-9
6020T – Base Automatic Temperature Secondary Bridge – 14:1 Ratio
- 0.01 Ω to 100 kΩ Range
- Front Panel 6-Channel Scanner
- Keep Warm Currents
- Best Accuracy < 7 × 10-8
AccuLoss® Series of Transformer Loss Measurement System
- Performance of Load and No
Load Loss Measurements - Heat Run Test
- Induced Voltage Test
- Zero Sequence
Impedance Measurement - Manual and Auto-ranging
- Automatic Calculation & Display of Power Measurement
